SIDE LOADERS

Speedline SLM
Speedline SLM

New innovative side loading solution



Speedline SCOPE
Speedline SCOPE

For containers up to 3,200 litres



Speedline CWS
Speedline CWS

For waste containers from 60 to 1,100 litres with a swappable body system



Speedline PPK

For containers from 60 to 2,300 litres



OMB products
OMB Side Loader Products

Side-loading compactors and containers available in different volume configurations

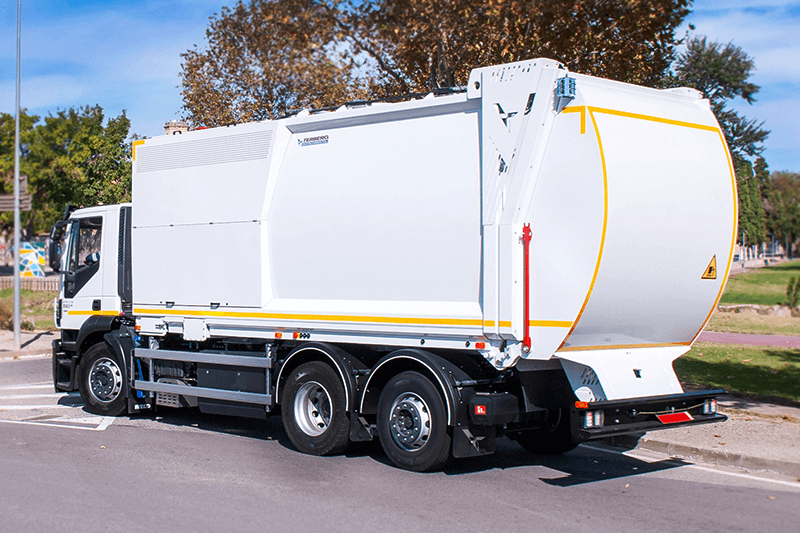

Speedline SLM

We present to you our new side loading concept, the Speedline SLM, which adapts to the challenges of the cities of today, without forgetting those of tomorrow.

Primarily designed for the collection of side loader containers widely used in the Spainish market, this rear load collector is very efficient, robust and full of innovations. The equipment allows the operator to precisely reposition the container thanks to the elevator's innovative side-shift function.



Speedline SLM Side Loader RCV
SPECIFICATIONS

  •  14 t
  • Axle configuration: 2, 3 and 4 axle variants
  • Skip volume: 15 m³ to 28 m³
  • Compaction hopper volume: 4.7 m³
  • Lifting capacity:1200kg
  • Cabin control panel: 12-inch touch screen with 4 simultaneous cameras
  • Type of arm: arms compatible with container handle from 1.1 (optional) to 3.2 m3, side reach 2700mm
  • Lift chair configuration: N/A
  • Container Exchange System (CWS) option: No
  • Remote diagnosis: via 4G Internet

Primarily designed for the collection of side loader containers widely used in the global market, this side load collector is very efficient, robust and full of innovations. The equipment allows the operator to precisely reposition the container thanks to the elevator's innovative side-shift function.



  • Revolutionary new telematics system, Terberg Connect as standard
  • Ergonomically designed cabin adapted to the needs of the needs of the operator
  • Robustness and realiability garaunteed from the experience across the Terberg Environmental group



Container compatibility



Download Brochure

Speedline SCOPE

Speedline Scope side loader offers a superb answer to the challenges when collecting large containers up to 3,200 l.

The large-volume paddle press is designed to efficiently handle the contents of containers up to 3,200 l.

Fast lifting cycles also enable 2 and 4-wheel large waste containers of 60 – 1,100 l to be emptied.
The Speedline Scope impresses with its powerful performance and intelligent design.
The robust design, high payloads and customised equipment are what make our side loader systems so successful.

​​​​​​​Whether you operate single person collection operations or a full crew –  the Speedline Scope will always proves its worth as a high quality, efficient solution for your waste collection operations.

SPECIFICATIONS

  • Up to 10 t
  • Axle Configuration: 3 axle variants
  • Body Volume: up to 28m³
  • Compaction Hopper Volume: 4 m³
  • Lifting Capacity: Up to 1500 kg
  • In-Cab Control Panel: MD4 controller, 7 or 10" touch screen
  • Arm Type: DUAL TELESCOPING Lateral range 3,000 mm
  • Lifter Chair Configuration: Dual comb with load detection
  • Container Swap System (CWS) option: Yes
  • Remote Diagnostics: Remote maintenance via Bluetooth

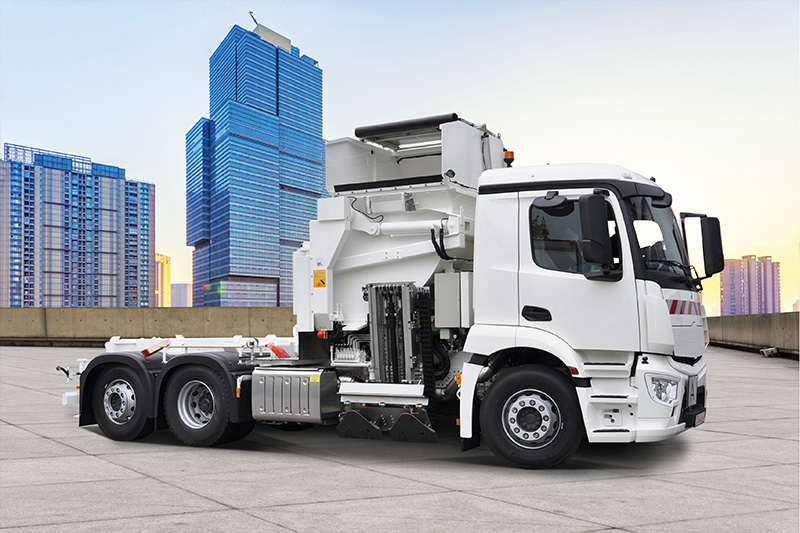

Speedline CWS

The CWS bodies for the Speedline range provide a perfect solution for separating the processes of collection and disposal thanks to a removable body system.

This means that the dedicated Speedline collection equipment can de-mount a CWS body once full and continue the collection rounds with an empty body, whilst a less specialised vehicle can transport one or more full CWS bodies to landfill for emptying thereby increasing efficiencies and minimising non-productive time of the collection vehicle.

The Speedline changeable body system (CWS) allows quick and safe mounting and de-mounting of vehicle bodies to overcome logistical headaches where material processing or landfill facilities are located far from collection areas.

In situations like this it makes little financial sense to have a collection equipment travelling this journey when it could be employed collecting more materials.

SPECIFICATIONS

  • Up to 13.5 t
  • Axle Configuration: 3 & 4 axle variants
  • Body Volume: 24-28m³
  • Compaction Hopper Volume: 2.3 m³
  • Lifting Capacity: Up to 1000 kg
  • In-Cab Control Panel: MD4 controller, 7 or 10" touch screen
  • Arm Type: DUAL TELESCOPING Lateral range 3,000 mm
  • Lifter Chair Configuration: Dual comb with load detection
  • Container Swap System
    (CWS) option: Yes
  • Remote Diagnostics: Remote maintenance via Bluetooth

Speedline PPK

The HS Speedline side loader impresses both local authorities and private waste management companies, due to its powerful performance and intelligent design.

The robust design, high payloads and customisable equipment are what make the HS side loader systems so successful. The automatic lifters for large waste containers between 60 and 2,300 l are perfectly suited to emptying the side loader containers also in underground systems

SPECIFICATIONS

  • Up to 15 t
  • Axle Configuration: 3 & 4 axle variants
  • Body Volume: Up to 32m³
  • Compaction Hopper Volume: 3.7 m³
  • Lifting Capacity: Up to 1000 kg
  • In-Cab Control Panel: MD4 controller, 7 or 10" touch screen
  • Arm Type: DUAL TELESCOPING Lateral range 3,000 mm
  • Lifter Chair Configuration: Dual comb with load detection
  • Container Swap System
    (CWS) option: No
  • Remote Diagnostics: Remote maintenance via Bluetooth

OMB Sideloader Technologies

OMB CMPL7ETSA

The CMPL7 ETSA side compactor is the latest evolution of the of CMPL vehicles with which OMB introduced, first in Italy and then in other countries, this technology applied to waste collection.



















OMB CWS B4

CWS B4 side loader main feature is that the body is not permanently fixed to the chassis structure. The container is interchangeable and it can be demounted and replaced with another.



















RST Container

RST container has been the leader in the market for twenty years and it is a functional and aesthetic reference in the stationary containers. Our production process is what distinguishes us.
